Ultrasonic Flowmeters
TSB supplies Ultrasonic Flowmeters in Jordan for accurate and reliable flow measurement of liquids and gases across water, wastewater, energy, chemical, petrochemical, oil and gas, and industrial process applications.
Ultrasonic flow measurement uses transit-time technology to determine flow velocity using ultrasonic signals transmitted through the medium. Solutions are available as inline flowmeters for high-accuracy permanent measurement and clamp-on flowmeters for non-invasive installation without opening or interrupting the process.
Product Overview
Ultrasonic Flowmeters combine:
- Flow measurement for liquids and gases
- Inline and non-invasive clamp-on configurations
- Bidirectional flow measurement
- No moving mechanical parts
- Free pipe cross-section with no additional pressure loss
- Measurement independent of electrical conductivity
- Clamp-on installation without process interruption
- Pipe sizes up to approximately DN4000 on selected clamp-on configurations
- Flow velocities up to approximately 15 m/s on selected liquid applications
- Process temperatures up to approximately 550°C on selected configurations
- Advanced diagnostics and verification functions
- Solutions for process, utility and custody transfer applications
Typical Technical Range
| Specification | Typical Capability |
|---|---|
| Measuring Principle | Ultrasonic transit-time |
| Media | Liquids and gases |
| Installation | Inline or clamp-on |
| Flow Direction | Bidirectional |
| Clamp-On Pipe Size | Up to approximately DN4000 / 160 in |
| Liquid Flow Velocity | Up to approximately 15 m/s on selected models |
| Medium Temperature | Up to approximately 550°C on selected clamp-on configurations |
| Pressure Loss | No additional pressure loss from clamp-on measurement |
| Pipe Materials | Steel, plastic, cast iron, composite and lined/unlined pipes depending on application |
| Applications | Process flow, utilities, water, hydrocarbons and gas measurement |
| Diagnostics | Integrated diagnostic, monitoring and verification functions on selected models |
Specifications and available options may vary. Contact TSB for full details and configuration support.
Key Features
- Non-invasive clamp-on measurement without cutting or opening the pipeline
- Inline configurations for applications requiring traceable and guaranteed measurement accuracy
- Suitable for conductive and non-conductive liquids
- Measurement largely independent of pressure, density, temperature, conductivity and viscosity for suitable homogeneous fluids
- No moving parts for reduced maintenance requirements
- Free pipe cross-section without additional flow obstruction
- No additional pressure loss with clamp-on sensors
- Suitable for aggressive, hazardous and toxic liquids without direct sensor contact
- Large pipe diameter capability
- Permanent and temporary measurement configurations
- Short inlet-run capability on selected systems for restricted installation spaces
- Integrated diagnostics, monitoring and verification functions
- Suitable for retrofit installations without process shutdown
- Gas ultrasonic solutions available for process and custody transfer applications
Applications
- Water and wastewater
- Process water
- Cooling and heating systems
- Hydropower
- Chemical processing
- Petrochemical plants
- Refineries
- Liquid hydrocarbons
- Oil and gas facilities
- Natural gas measurement
- Gas transmission and distribution
- Energy measurement
- Utility monitoring
- Pipeline measurement
- Leakage monitoring
- Custody transfer applications
Why Choose Ultrasonic Flowmeters?
Ultrasonic Flowmeters provide a versatile measurement solution where low maintenance, minimal pressure loss and flexible installation are important.

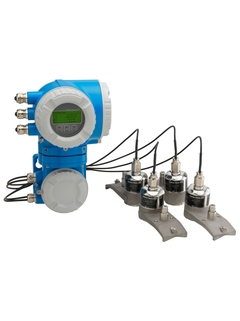

Clamp-on sensors are mounted externally on the pipe, allowing flow measurement without interrupting the process or introducing components into the flowing medium. This makes them particularly useful for retrofit applications, large pipelines and aggressive or hazardous fluids.

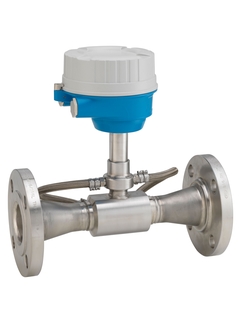

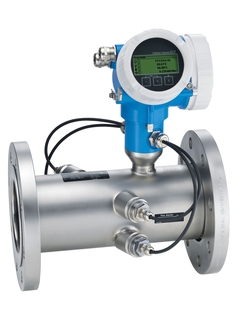

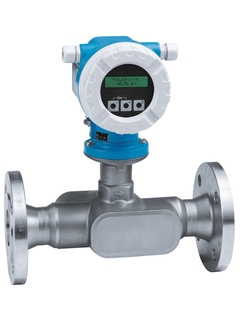

Inline ultrasonic meters provide dedicated measurement sections for applications requiring higher accuracy and traceable performance, including demanding process and commercial metering applications.
For plant operators, ultrasonic technology provides reliable flow measurement, minimal process interference, low maintenance requirements and flexible installation across a wide range of liquid and gas applications.
TSB Support in Jordan
TSB supplies Ultrasonic Flowmeters throughout Jordan and supports customers in selecting the appropriate solution according to medium, pipe diameter, flow range, temperature, pressure, accuracy and installation requirements.
Our local support includes:
- Instrument selection and technical consultation
- Application engineering
- Flow meter sizing and configuration
- Clamp-on installation support
- Supply and commissioning
- Calibration and verification support
- System integration
- After-sales service
- Spare parts support
- Preventive and corrective maintenance
- On-site technical support
- Troubleshooting assistance
Contact TSB for Ultrasonic Flowmeter specifications, selection, pricing and configuration support in Jordan.
