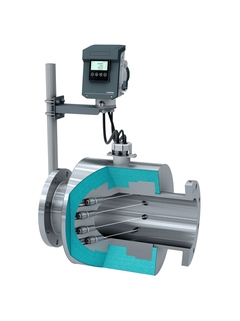

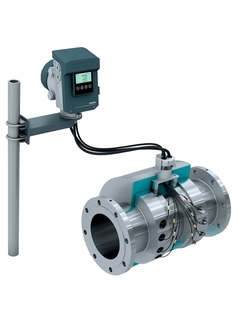

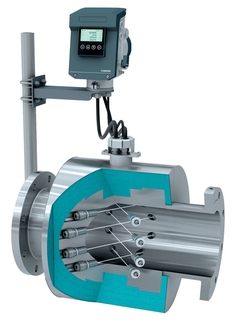

LNG Custody Transfer Flow Meter
TSB supplies LNG Custody Transfer Flow Meters in Jordan for accurate and reliable measurement of liquefied natural gas during loading, unloading, storage, transport and transfer operations. Designed specifically for LNG applications, ultrasonic custody transfer measurement provides high accuracy, low pressure loss and reliable performance under demanding cryogenic process conditions.
The measuring principle uses ultrasonic transit-time measurement across the full pipe bore. This enables accurate LNG volume flow measurement without internal obstructions, while integrated diagnostics support continuous monitoring of meter performance and process conditions.
Product Overview
LNG Custody Transfer Flow Meters combine:
- Dedicated measurement for liquefied natural gas
- Custody transfer volume flow measurement
- Ultrasonic transit-time measurement
- Accuracy up to approximately ±0.2% of reading
- Repeatability up to approximately ±0.05%
- Nominal sizes from approximately DN200 to DN900
- Operating pressures up to approximately 19 bar(g)
- Full-bore measurement design
- No flow conditioner required
- Integrated real-time diagnostics
- Metrological approvals for custody transfer applications
Typical Technical Range
| Specification | Typical Range |
|---|---|
| Measuring Principle | Ultrasonic transit-time |
| Medium | Liquefied Natural Gas (LNG) |
| Accuracy | Up to approximately ±0.2% of reading after flow calibration and adjustment |
| Repeatability | Up to approximately ±0.05% of measured value |
| Nominal Diameter | DN200 – DN900 / 8 – 36 in |
| Operating Pressure | 0 – 19 bar(g) |
| Measured Variables | Actual volume, volumetric flow, fluid velocity and speed of sound |
| Communication | Modbus RS485, Modbus RTU/ASCII, Bluetooth and USB |
| Outputs | Digital / frequency outputs |
| Metrological Approval | OIML R117 Class 0.3 |
| Industry Standard | API MPMS Chapter 5.8 |
Specifications and available options may vary. Contact TSB for full details and configuration support.
Key Features
- High-accuracy LNG measurement for custody transfer applications
- Full-bore ultrasonic design with no internal flow obstruction
- No additional flow conditioner required
- Minimal pressure loss through the measuring section
- Real-time measurement and diagnostic functions
- Measurement of fluid velocity and speed of sound for process monitoring
- Intrinsically safe ultrasonic transducers
- Factory thermal pre-insulation
- Remote signal processing configuration
- Digital communication for integration with terminal and metering systems
- Metrological approvals for legally controlled LNG transfer
- Suitable for onshore and offshore installations
- Designed specifically for LNG liquefaction, transport and storage applications
Applications
- LNG terminals
- LNG loading and unloading
- LNG ship loading
- LNG bunkering
- LNG storage facilities
- Liquefaction plants
- Regasification terminals
- LNG transfer lines
- Marine LNG applications
- Onshore and offshore facilities
- Custody transfer metering
- LNG distribution infrastructure
- Cryogenic process applications
Why Choose LNG Custody Transfer Flow Measurement?
LNG custody transfer applications require high measurement accuracy, reliability and traceability because even small measurement uncertainties can have a significant commercial impact during large-volume transfers.
Ultrasonic technology provides a full-bore measurement path without introducing mechanical restrictions into the LNG flow. This helps minimize pressure loss while providing accurate volumetric measurement across large pipe sizes.
Integrated diagnostics continuously monitor measurement quality and process conditions, while metrological approvals support use in regulated custody transfer applications.
For LNG terminal operators, suppliers and end users, this provides accurate commercial measurement, reduced pressure loss, reliable system diagnostics and dependable performance throughout LNG transfer operations.
TSB Support in Jordan
TSB supplies LNG Custody Transfer Flow Meter solutions throughout Jordan and supports customers in selecting and configuring the appropriate system according to pipe size, operating pressure, metrological requirements and LNG transfer application.
Our local support includes:
- Instrument and system selection
- Application engineering
- Meter configuration
- Custody transfer application support
- Supply and commissioning
- Integration assistance
- Calibration coordination
- After-sales service
- Spare parts support
- Preventive and corrective maintenance
- On-site technical support
- Troubleshooting assistance
Contact TSB for LNG Custody Transfer Flow Meter specifications, selection, pricing and configuration support in Jordan.
