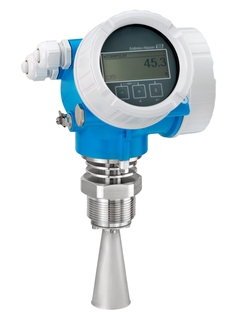

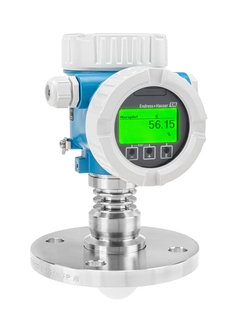

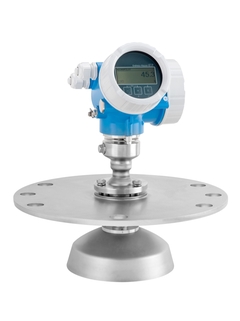

Radar Level Measurement
TSB supplies Radar Level Measurement solutions in Jordan for continuous, non-contact level measurement of liquids, pastes, slurries and bulk solids. Free-space radar provides reliable measurement across storage tanks, process vessels, silos and demanding industrial applications without direct contact with the process medium.
The measuring principle uses high-frequency radar pulses transmitted toward the product surface. The reflected signal is evaluated using Time-of-Flight measurement to determine the distance to the surface and calculate the product level. Radar measurement is largely unaffected by changes in density, conductivity, temperature, gas blankets, vapors or dust, depending on the application.
Product Overview
Radar Level Measurement combines:
- Continuous non-contact level measurement
- Measurement of liquids and bulk solids
- Suitable for pastes and slurries
- Measuring distances up to approximately 125 m
- Measurement accuracy down to approximately ±1 mm on selected configurations
- Process temperatures up to approximately +450°C
- Process pressures from vacuum up to approximately 160 bar
- High-frequency and 80 GHz radar technology
- Narrow beam angles for confined vessels and silos
- High-pressure and high-temperature configurations
- Hygienic and hazardous-area configurations
- Advanced diagnostics and verification functions
Typical Technical Range
| Specification | Typical Capability |
|---|---|
| Measuring Principle | Free-space radar / Time-of-Flight |
| Measurement | Continuous level |
| Media | Liquids, pastes, slurries and bulk solids |
| Maximum Measuring Distance | Up to approximately 125 m |
| Accuracy | Down to approximately ±1 mm on selected configurations |
| Process Temperature | Approximately -196°C to +450°C, depending on configuration |
| Process Pressure | Vacuum up to approximately 160 bar, depending on configuration |
| Radar Frequency | High-frequency radar including 80 GHz |
| Installation | Non-contact |
| Communication | 4–20 mA, HART, PROFIBUS PA, PROFINET over Ethernet-APL and other options depending on device |
| Applications | Storage, process vessels, silos and tank gauging |
Specifications and available options may vary. Contact TSB for full details and configuration support.
Key Features
- Continuous non-contact level measurement
- Suitable for both liquids and bulk solids
- No mechanical contact with the process medium
- Measurement unaffected by density and conductivity
- Reliable measurement in applications with vapors and gas blankets
- Reliable bulk-solids measurement in dusty and noisy filling conditions
- 80 GHz radar technology provides strong beam focusing for narrow vessels and silos
- Long measuring ranges for large tanks and bulk storage silos
- High-temperature and high-pressure configurations available
- Suitable for corrosive and aggressive media with appropriate wetted materials
- Hygienic configurations available for food and life sciences
- Advanced diagnostics and device verification on selected instruments
- Bluetooth configuration available on selected models
- Multiple analog and digital communication options
- Low maintenance requirements due to non-contact operation
Applications
- Storage tanks
- Process vessels
- Chemical storage
- Oil and gas facilities
- Refineries
- Petrochemical plants
- Tank farms
- Water and wastewater
- Food and beverage
- Pharmaceutical processing
- Silos and hoppers
- Cement and building materials
- Mining and minerals
- Powders and granulates
- Grain and agricultural products
- High-temperature process vessels
Why Choose Radar Level Measurement?
Radar Level Measurement provides a highly versatile non-contact solution for continuous level measurement across liquids and bulk solids.
Because the measurement is performed without direct contact with the process medium, radar sensors can be used in aggressive, corrosive, high-temperature and high-pressure applications with the appropriate configuration.
Radar measurement is also largely independent of changing product properties such as density and conductivity. In bulk solids, radar remains effective under conditions involving dust and filling noise, while narrow radar beams allow reliable measurement in tall or narrow silos with internal structures.
For plant operators, this provides accurate level measurement, broad application coverage, low maintenance requirements and reliable operation under demanding process conditions.
TSB Support in Jordan
TSB supplies Radar Level Measurement solutions throughout Jordan and supports customers in selecting the appropriate system according to measuring distance, medium properties, vessel geometry, temperature, pressure, required accuracy and communication requirements.
Our local support includes:
- Instrument selection and technical consultation
- Application engineering
- Radar frequency and antenna selection
- Measuring range configuration
- Supply and commissioning
- System integration
- Verification and diagnostic support
- After-sales service
- Spare parts support
- Preventive and corrective maintenance
- On-site technical support
- Troubleshooting assistance
Contact TSB for Radar Level Measurement specifications, selection, pricing and configuration support in Jordan.
