Differential Pressure Transmitters
TSB supplies Differential Pressure Transmitters in Jordan for accurate measurement of differential pressure, flow, level, volume and mass across industrial process applications. Designed for liquids, gases and vapors, these transmitters provide reliable measurement in applications ranging from filter monitoring and flow measurement to pressurized vessel level and demanding process conditions.
Available with conventional metallic measuring cells, diaphragm seals and electronic differential pressure configurations, the range can be adapted to different process temperatures, static pressures, wetted materials and installation requirements.
Product Overview
Differential Pressure Transmitters combine:
- Differential pressure measurement up to approximately 40 bar
- Static process pressure capability up to approximately 420 bar
- Accuracy up to approximately ±0.035%
- Process temperatures up to approximately 400°C with diaphragm seal configurations
- Measurement of liquids, gases and vapors
- Differential pressure, flow and level measurement
- Metallic measuring membranes

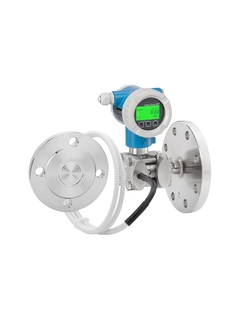

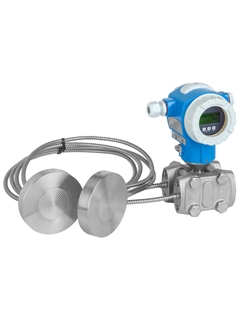

- Diaphragm seal configurations for demanding processes
- Electronic differential pressure solutions
- Digital communication and remote configuration options
- Diagnostic and condition-monitoring capabilities on selected models
Typical Technical Range
| Specification | Typical Range |
|---|---|
| Differential Pressure Range | Approximately 10 mbar – 40 bar |
| Maximum Static Pressure | Up to approximately 420 bar |
| Accuracy | Up to approximately ±0.035% |
| Process Temperature | Approximately -40°C to +400°C, depending on configuration |
| Measured Media | Liquids, gases and vapors |
| Output | 4–20 mA HART |
| Digital Communication | HART, PROFINET over Ethernet-APL, PROFIBUS PA |
| Wetted Materials | 316L, Alloy C, Tantalum, Monel, Gold and other selected materials |
| Measurement Applications | Differential pressure, flow and level |
Specifications and available options may vary. Contact TSB for full details and configuration support.
Key Features
- High measurement accuracy and long-term stability for critical process applications
- Differential pressure monitoring across filters, pumps and process equipment
- Flow measurement when combined with primary flow elements
- Hydrostatic level measurement in pressurized vessels
- Measurement of volume and mass based on differential pressure
- High static pressure resistance for demanding industrial processes
- Diaphragm seal configurations for high process temperatures and challenging media
- Corrosion-resistant wetted material options for aggressive process conditions
- 4–20 mA HART and digital communication options for integration into process control systems
- Wireless device configuration via Bluetooth on selected configurations
- Guided commissioning and proof-testing functions on selected models
- Diagnostic monitoring for conditions such as plugged impulse lines on selected configurations
- Functional safety and hazardous-area configurations available depending on application
Applications
- Filter differential pressure monitoring
- Flow measurement using primary elements
- Pressurized tank level measurement
- Volume and mass measurement
- Pump monitoring
- Heat exchanger monitoring
- Distillation columns
- Evaporators
- Steam applications
- Water and wastewater treatment
- Oil and gas facilities
- Chemical and petrochemical plants
- Power generation
- Food and beverage processing
- Pharmaceutical applications
- Mining and mineral processing
- Industrial utilities
Why Choose Differential Pressure Transmitters?
Differential pressure measurement provides a versatile solution for several critical process variables using a single proven measurement principle.
For flow measurement, the transmitter measures the pressure difference generated across a primary flow element. For level measurement in pressurized vessels, differential pressure allows the hydrostatic pressure of the liquid to be separated from the vessel head pressure. Differential pressure can also be used to monitor filters, detect pressure losses and identify changing process conditions.
Modern transmitters add advanced diagnostics, digital communication and remote configuration capabilities, helping operators improve measurement reliability, simplify commissioning and support condition-based maintenance.
For industrial operators, this provides accurate process measurement, flexible application coverage, reliable plant integration and improved visibility into process and instrument condition.
TSB Support in Jordan
TSB supplies Differential Pressure Transmitters throughout Jordan and supports customers in selecting the appropriate instrument according to measuring range, static pressure, process temperature, wetted materials, process connection and communication requirements.
Our local support includes:
- Instrument selection and technical consultation
- Application engineering
- Sizing and configuration support
- Supply and commissioning
- Calibration support
- After-sales service
- Spare parts support
- Preventive and corrective maintenance
- On-site technical support
- Integration and troubleshooting assistance
Contact TSB for Differential Pressure Transmitter selection, specifications, configuration, pricing and availability in Jordan.
